Tungsten carbide dies nib for wire drawing dies
Tungsten carbide dies nib for wire drawing dies

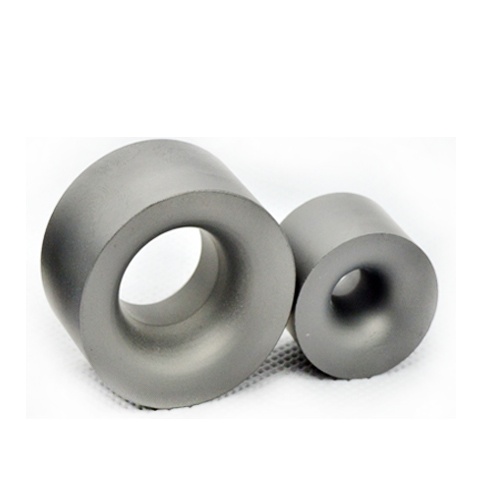

Carbide drawing dies blank is also call as carbide drawing dies nib, it was made of cemented carbide and was using in drawing matel dies such as steel wires, copper wires and so on

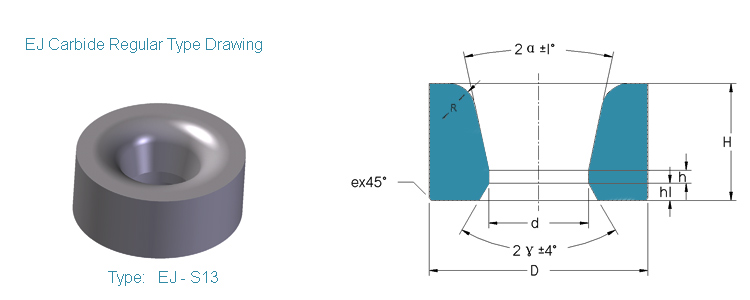

Below are some specification about EJ-S13 type tungsten carbide dies nib for wire drawing dies, check if there any size you are looking for,.
we can also produce cemented carbide dies nib for wire drawing dies according to your drawing or sample.
|
Type |
Dimension（㎜） |
Reference dimension(mm) |
||||||||
|
D |
H |
d |
2α |
2γ |
h |
h1 |
h2 |
R |
e |
|
|
S13-0201818-8.7-2.5° |
20 |
18 |
8.7 |
18° |
60° |
3.5 |
2.5 |
6．0 |
13.5 |
1.5 |
|
S13-0201818-9.7-2.5° |
20 |
18 |
9.7 |
18° |
60° |
3.5 |
2.5 |
6．0 |
13.5 |
1.5 |
|
S13-0222018-10.7-2.5° |
22 |
20 |
10.7 |
18° |
60° |
4.0 |
3.0 |
6．5 |
14.0 |
1.5 |
|
S13-0222018-11.7-2.5° |
22 |
20 |
11.7 |
18° |
60° |
4.0 |
3.0 |
6．5 |
14.0 |
1.5 |
|
S13-0252018-12.7-2.5° |
25 |
20 |
12.7 |
18° |
60° |
4.5 |
3.5 |
7．0 |
14.5 |
1.5 |
|
S13-0252018-13.7-2.5° |
25 |
20 |
13.7 |
18° |
60° |
4.5 |
3.5 |
7．0 |
14.5 |
1.5 |
|
S13-0282118-14.7-2.5° |
28 |
21 |
14.7 |
18° |
60° |
5.0 |
3.5 |
7．5 |
15.0 |
1.5 |
|
S13-0302218-15.7-2.5° |
30 |
22 |
15.7 |
18° |
60° |
5.0 |
3.5 |
5．5 |
10.0 |
1.5 |
|
S13-0302218-16.7-2.5° |
30 |
22 |
16.7 |
18° |
60° |
5.0 |
3.5 |
5．5 |
10.0 |
1.5 |
For more information about tungsten carbide dies nib for wire drawing dies, please feel free to contact info@ejcarbides.com or call +86 0731 22995400
