Tungsten carbide spiral milling strips

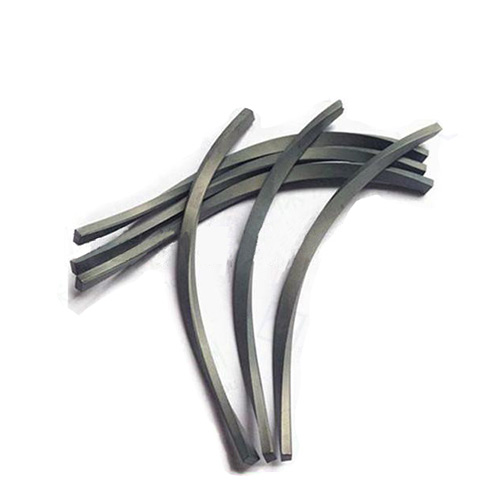

We can produce tungsten carbide spiral milling strips with different size and grade according to your request or drawing, tungsten carbide spiral milling strips are using in making large diameter end mills.

Product No.: 2019131101153

Online Inquiry Email Us

Details

We can produce tungsten carbide spiral milling strips with different size and grade according to your request.

Common Grade: K30、K20、K10、YW1、YW2、YS25 、YS2T、YH8、YH12

Cutting Edge Diameter Scope: D7.0mm --D200.0mm

Helix Angle Scope: 5°-- 40°

Axial Length Scope: 15.0mm-- 150.0mm

Application: using in making large diameter end mills

Regular size tungsten carbide spiral milling strips size as below:
We can also produce tungsten carbide spiral milling strips customized.

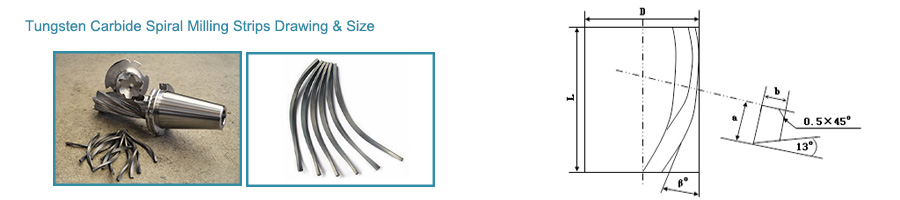

Tungsten carbide spiral milling strips drawing and size

Diameter(mm)		Max Length(mm)		Spiral	Size(mm)		Size(mm)
D	Tol.	L	Tol.	βo	a	Tol.	b	Tol.
28	+1.0	310	+5	30	5.5	+/- 1.5	3.3	+/- 1.5
30	+1.0	310	+5	30	5.5	+/- 1.5	3.3	+/- 1.5
32	+1.0	310	+5	30	5.5	+/- 1.5	3.3	+/- 1.5
36	+1.0	310	+5	30	5.5	+/- 1.5	3.3	+/- 1.5
40	+1.4	310	+5	30	6.5	+/- 1.5	3.5	+/- 1.5
45	+1.4	310	+5	30	6.5	+/- 1.5	3.5	+/- 1.5
50	+1.4	310	+5	30	6.5	+/- 1.5	3.5	+/- 1.5
63	+1.4	310	+5	30	6.5	+/- 1.5	3.5	+/- 1.5
28	+1.0	310	+5	45	5.5	+/- 1.5	3.3	+/- 1.5
30	+1.0	310	+5	45	5.5	+/- 1.5	3.3	+/- 1.5
32	+1.0	310	+5	45	5.5	+/- 1.5	3.3	+/- 1.5
36	+1.0	310	+5	45	5.5	+/- 1.5	3.3	+/- 1.5
40	+1.4	310	+5	45	6.5	+/- 1.5	3.5	+/- 1.5
45	+1.4	310	+5	45	6.5	+/- 1.5	3.5	+/- 1.5
50	+1.4	310	+5	45	6.5	+/- 1.5	3.5	+/- 1.5
63	+1.4	310	+5	45	6.5	+/- 1.5	3.5	+/- 1.5

We can produce tungsten carbide spiral milling strips with other different size and grade according to your drawing or sample.

How is the tungsten carbide spiral milling strips produced out:

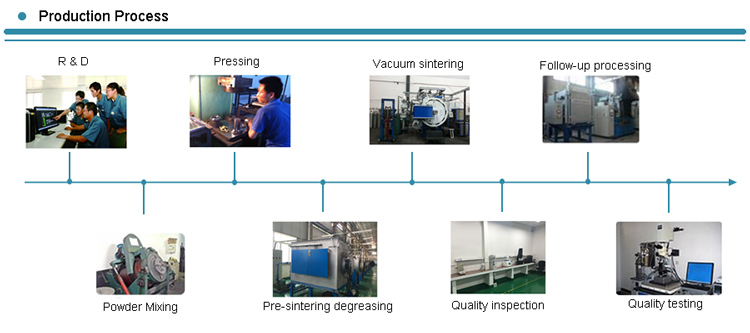

Below is the picture shows the producing process of our tungsten carbide products
