Carbide drawing dies blank
Carbide drawing dies blank

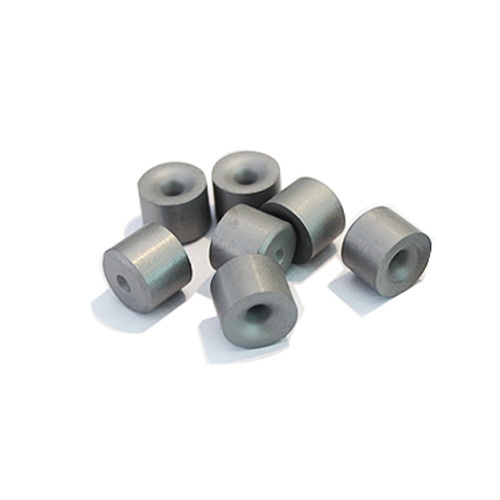

Carbide drawing dies blank is also call as carbide drawing dies nib, it was made of cemented carbide and was using in drawing matel dies such as steel wires, copper wires and so on
|
Type |
Dimension（㎜） |
Reference dimension(mm) |
|||||||||
|
D |
H |
d |
2α |
2β |
2γ |
h |
h1 |
h2 |
R |
e |
|
|
S11-0080612-0.3 |
8 |
6 |
0.3 |
12° |
40° |
60° |
0.3 |
1.0 |
1.2 |
2.0 |
0.5 |
|
S11-0080612-0.4 |
8 |
6 |
0.4 |
12° |
40° |
60° |
0.3 |
1.0 |
1.2 |
2.0 |
0.5 |
|
S11-0080616-0.5 |
8 |
6 |
0.5 |
16° |
40° |
60° |
0.3 |
1.0 |
1.5 |
2.0 |
0.5 |
|
S11-0080612-0.6 |
8 |
6 |
0.6 |
12° |
40° |
60° |
0.4 |
1.0 |
1.4 |
2.0 |
0.5 |
|
S11-0080616-0.7 |
8 |
6 |
0.7 |
16° |
40° |
60° |
0.5 |
1.0 |
1.7 |
2.0 |
0.5 |
|
S11-0080616-0.8 |
8 |
6 |
0.8 |
16° |
40° |
60° |
0.6 |
1.0 |
1.8 |
2.0 |
0.5 |
|
S11-0080612-0.9 |
8 |
6 |
0.9 |
12° |
40° |
60° |
0.6 |
1.0 |
1.8 |
2.0 |
0.5 |
|
S11-0080612-1.0 |
8 |
6 |
1.0 |
12° |
40° |
60° |
0.6 |
1.0 |
1.8 |
2.0 |
0.5 |
|
S11-0080610-1.1 |
8 |
6 |
1.1 |
10° |
40° |
60° |
0.5 |
1.0 |
2.0 |
2.0 |
0.5 |
|
S11-0080610-1.2 |
8 |
6 |
1.2 |
10° |
40° |
60° |
0.6 |
1.0 |
2.0 |
2.0 |
0.5 |
|
S11-0080610-1.4 |
8 |
6 |
1.4 |
10° |
40° |
60° |
0.6 |
1.0 |
2.0 |
2.0 |
0.5 |
|
S11-0080610-1.6 |
8 |
6 |
1.6 |
10° |
40° |
60° |
0.6 |
1.0 |
2.0 |
2.0 |
0.5 |
For more information about carbide drawing dies blank, please feel free to contact info@ejcarbides.com or call +86 0731 22995400
