Y Exit coolant hole tungsten carbide rods

 Y Exit coolant hole tungsten carbide rods


There maily are two types Y Exit coolant hole tungsten carbide rods:
one is with three coolant holes and onther is four coolant holes.
The Y-Exit coolant hole carbide rods is using for making cutting tools. Those coolant holes are molding before it went to sintered.
So the entire structure of the carbide rods are keeping stable.
We could offer Y exit coolant hole tungsten carbide rods in both well grinding and blank state.

We offer Y Exit coolant hole tungsten carbide rods with different diameter, length and coolant hole number and size.

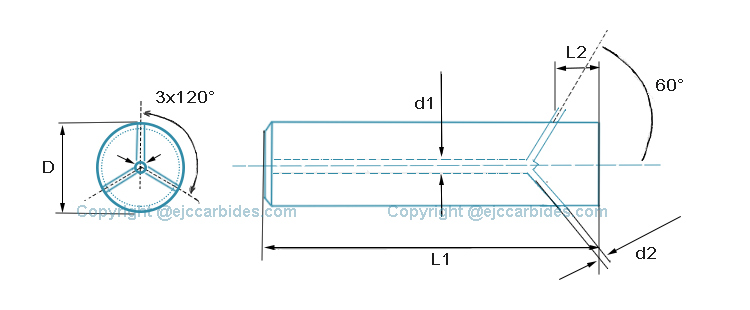

Drawing of 3 Y-shape coolant holes tungsten carbide rods are as below:
 Click the drawing picture to down load the specification document

And regular size of 3 Y-shape coolant holes tungsten carbide rods are as below:

D(mm)	L1(mm)	L2(mm)	d1(mm)	d2(mm)
6.0	58	3	1.2	0.7
8.0	64	4	1.6	0.9
10.0	73	5	2.0	1.2
12.0	84	6	2.2	1.3
14.0	84	7	2.4	1.4
16.0	93	8	2.6	1.5
18.0	93	9	2.8	1.6
20.0	105	10	3.0	1.7

In order to offer more convinient for you, we have set a document for your download,please turn to our download page  and find"3 Y-Exit holes carbide rods" or "4 Y-Exit holes carbide rods"
or you can contact info@ejcarbides.com ask it.
